Engines

Three generations of student-built engines, all burning ethanol with nitrous oxide.

NarlikarFoundation

Our foundational engine

The engine every later one grew from. It burns ethanol with nitrous oxide and was the first liquid engine we fired.

1.5 kNPeak thrust6 s burn time

Highlights

  1. Our foundational engine.
  2. Ethanol and nitrous oxide powered.
  3. A 6 second burn at 1.5 kN peak thrust.

Engine data

Peak thrust
1.5 kN
Burn time
6 s
Propellants
Ethanol + nitrous oxide
Role
Foundational engine

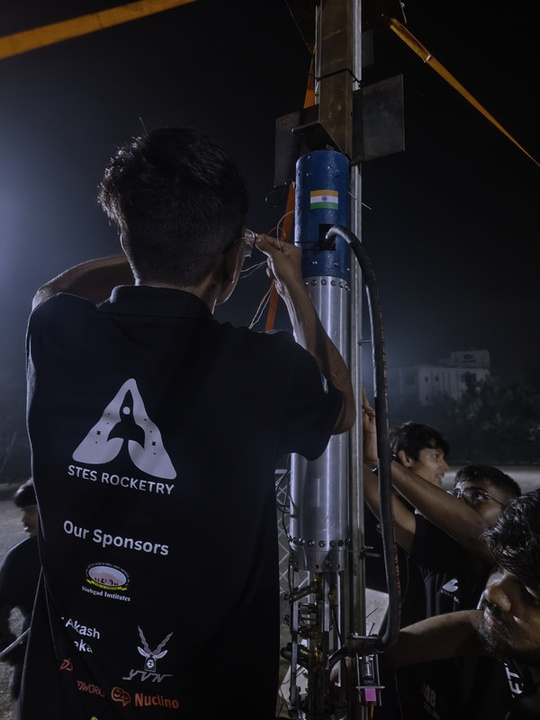

Patankar on the test stand with the team

PatankarFlown

Flown on Vikrant

Named after the Pune scientist behind CFD and the SIMPLE algorithm. It powers Vikrant, India's first student-built liquid engine rocket.

2.2 kNPeak thrustL class · 4,500 Ns

Highlights

  1. Named after the Pune scientist behind CFD and the SIMPLE algorithm.
  2. An internal downcomer based system for fuel transfer.
  3. Our own SRAD weight based quick disconnect system.
  4. Flew on Vikrant.

Engine data

Peak thrust
2.2 kN
Burn time
2.5 s
Total impulse
L class, 4,500 Ns
Propellants
Ethanol + nitrous oxide
Fuel transfer
Internal downcomer
Ground side
Weight-based quick disconnect
In developmentMetal 3D printed · AlSi10Mg

Next engineIn development

Built for Project Dhawan

Metal 3D printed, and never done by a student team in India. It is the engine behind Project Dhawan, our 3 km liquid rocket.

3 kNPeak thrust5 s burn time, planned

Highlights

  1. Metal 3D printed in AlSi10Mg.
  2. Never done by a student team in India.
  3. Powers Project Dhawan, our 3 km liquid rocket.

Engine data

Peak thrust
3 kN
Burn time
5 s
Build
Metal 3D printed
Alloy
AlSi10Mg
Propellants
Ethanol + nitrous oxide
